其結構為外圈分半、內圈整體型，適合于要求內圈旋轉精度要求高的部位，由于內外圈已經加工了安裝孔，所以不需要固定法蘭和支撐座，更加有利于安裝，主要應用于機器人CSF/CSG系列諧波減速機。您在選擇此類軸承時，可先與我們聯系，索取軸承工況調查表，填寫后回傳至我公司，我們技術部門會(huì )根據實際工況幫助您進行軸承選型。

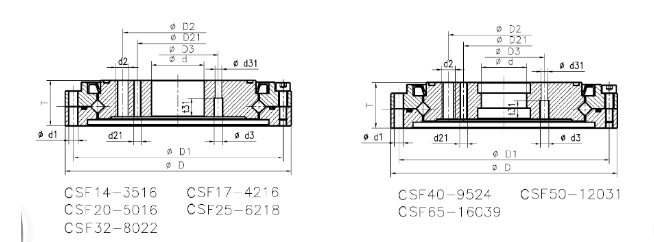

| 軸承型號 | 外形尺寸 | 額定負荷（KN） | 重量 | |||||||||||||||
| d | D | T | D1 | D2 | D21 | D3 | n1-d1 | n2-d2 | n21-d21 | n3-d3 | d31 | t31 | rsmin | Cr | Cor | kg | ||
| CSF14(CSG14) | 9 | 55 | 16.5 | 49 | 23 | 14.5 | 15.5 | 8-Φ3.5 | 6-M4 | 6-M3 | 2-Φ3 | --- | --- | 0.3x45° | 4.6 | 5.1 | 0.25 | |
| CSF17(CSG17) | 10 | 62 | 16.5 | 56 | 27 | 17.5 | 17.5 | 10-Φ3.5 | 6-M5 | 6-M4 | 2-Φ3 | --- | --- | 0.3x45° | 5.2 | 6.4 | 0.27 | |
| CSF20(CSG20) | 14 | 70 | 16.5 | 64 | 32 | 24 | 19 | 12-Φ3.5 | 8-M6 | 8-M5 | 4-Φ3 | 4-Φ2.8 | 7 | 0.3x45° | 6.1 | 8.4 | 0.36 | |
| CSF25(CSG25) | 20 | 85 | 18.5 | 79 | 42 | 30 | 26 | 16-Φ3.5 | 8-M8 | 8-M6 | 4-Φ3 | 4-Φ2.8 | 7 | 0.5x45° | 11.2 | 16 | 0.65 | |
| CSF32(CSG32) | 26 | 112 | 22.5 | 104 | 55 | 40 | 34 | 16-Φ4.5 | 8-M10 | 8-M8 | 4-Φ5 | 4-Φ4.7 | 10 | 0.5x45° | 18.5 | 28.3 | 1.1 | |
| CSF40(CSG40) | 24 | 126 | 24 | 117 | 68 | 50 | 42 | 20-Φ5 | 8-M10 | 8-M10 | 4-Φ5 | --- | --- | 0.5x45° | 18.9 | 30.7 | 1.6 | |
| CSF50(CSG50) | 32 | 157 | 31 | 147 | 84 | 60 | 50 | 16-Φ5.5 | 8-M14 | 8-M14 | 4-Φ5 | --- | --- | 0.5x45° | 42.8 | 67.7 | 3.6 | |
| CSF65(CSG65) | 44 | 210 | 39 | 198 | 110 | 80 | 64 | 20-Φ6.5 | 8-M16 | 8-M16 | 4-Φ6 | --- | --- | 0.5x45° | 67.7 | 114.9 | 7.8 | |
